Monday, February 20, 2012

Day 45: Introducing Benjy

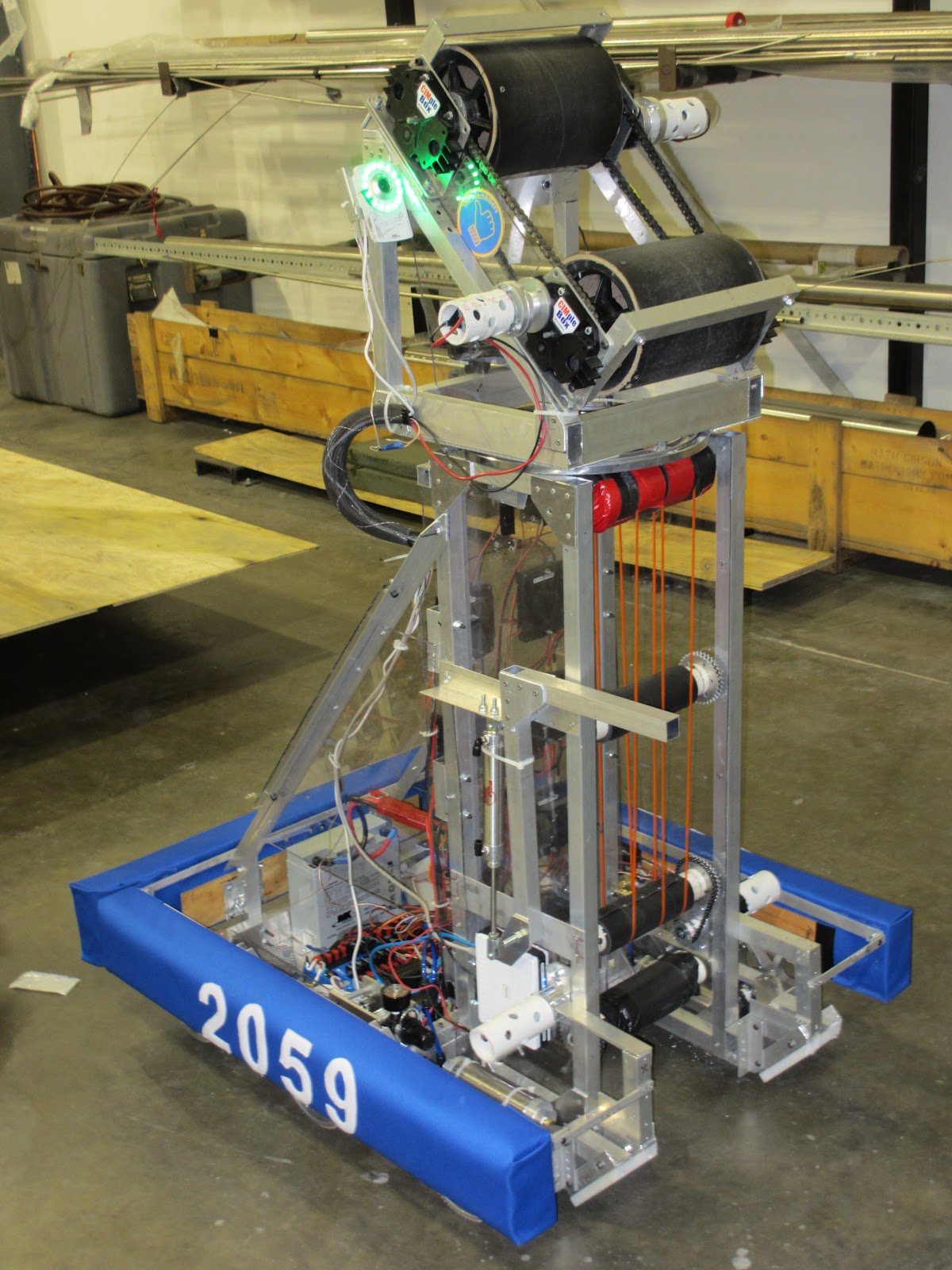

Even though the team is working tomorrow my blog says day 45 so now its time for everyone to meet Benjy, Team 2059's 2012 robot:
Not to bad for breaking in 15 new student this year.
6 wheel westcoast drive(which is a first for me as well as the team) using 6" Performance wheels as well as a custom gearbox. The white things on the front are Delrin skids(subsystem 6) which were added when we had to change from 8" wheels to 6" ones. The bearing blocks were made of ABS but they all broke over the weekend as I mentioned earlier and will have to be replaced.
Collection System:
Bottom roller is powered by a 550 in a 26:1 gearbox and the rest of the rollers are powered by a 550 in a 64:1 gearbox. Krunch students(old and new) will notice that the rollers are basically shorter versions of the rollers on Krunch 12. We did them a little differently but the overall concept is the same.
Two 6"diameter cardboard(yes cardboard, we got it from a McMaster shipping tube) rollers are bolted to 6" KOP wheels which are driven by 2 Fisher Price motors attached to CIMple boxes. The creative part of it is that the bottom FP drives the top roller and vice-versa. This was done to increase the speed closer to the level we had on the prototype.

Bridge Manipulator:
It is still a work in progress but you can kinda see it in the first photo. It should work once we get it all together but that may not be until we get to Palmetto.

Overall I think the team performed very well this season. We could have worked a little faster and been done a little sooner but you can only do what you can.  See everyone at Palmetto and North Carolina.
